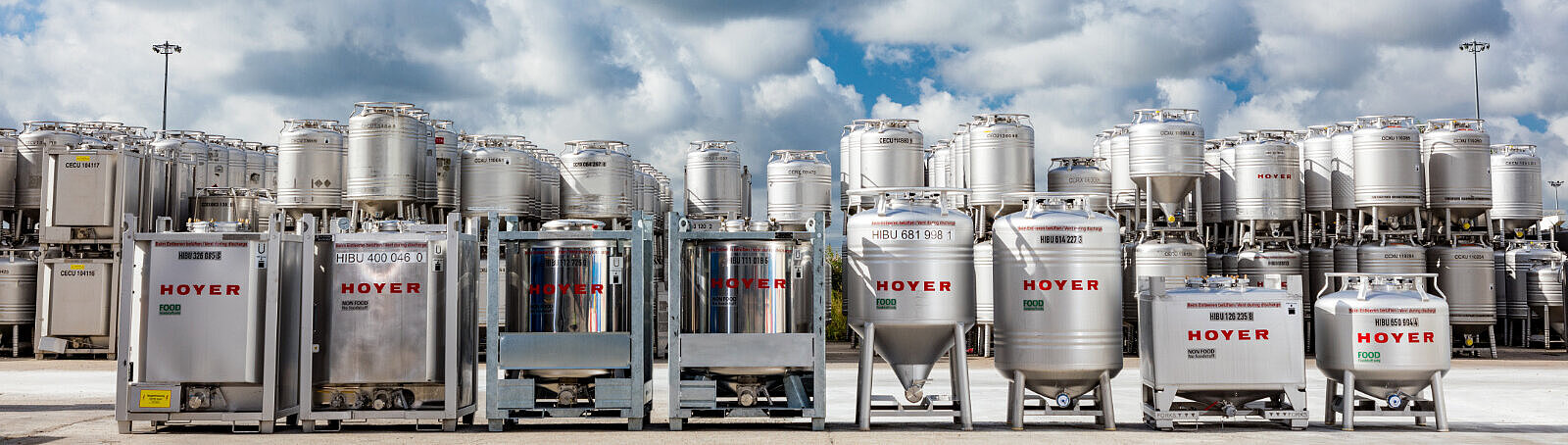

HOYER IBC several types in the depot
HOYER IBC several types in the depot

Find the ideal IBC

IBC-CONFIGURATOR: ELECTRIC HEATED AND INSULATED IBC TYPE 434C

Electric heated and insulated IBC Type 434C

Selection
Volume:1000 l
Design:Cylindrical with frame
Dimensions: Length: 1.100 mm
Width: 1.200 mm
Height: 1.670 mm
Diameter: 1.070 mm
Tank material:Stainless steel DIN 1.4301 / AISI 304
Frame:Stainless steel DIN 1.4301 / AISI 304
Wall thickness:Shell: 2,0 mm
Top end: 2,0 mm
Top bottom: 2,5 mm
WeightTare: approx 400 kg
Max. gross: 2.250 kg
Pressure: Max. working pressure: + 0,25 bar
Test pressure: + 0,25 bar
Max. vacuum pressure: - 0,05 bar
Equipment
Customer data
